We are a company with 80+ years of experience in designing and producing DC motors.

Paulides B.V. is a Dutch SME based in Sprang-Capelle established in 1938 and producer of DC supplied motors. The company is capable of delivering single to relatively large orders.

The brushed DC commutator machines currently manufactured by Paulides B.V. range in size from 150W to 25kW and from 12V to 220V-DC and from 500rpm to 4000rpm.

Products

Image of Paulides B.V. products

Shop Now!


Summary of available Paulides B.V. industrial DC motors with brushes:

Frame size Type of motor Voltage range Max. cont. output Max. cont. input Speed range Min. enclosure Max. enclosure Mounting
A120PMS P.M. 12-180V 0.40 kW 1 kW 600-4000rpm IP40 IP54 B3/B14/B5/IEC63/71
A120PM P.M. 12-180V 0.75 kW 1.1 kW 600-4000rpm IP40 IP55 B3/B14/B5/IEC71/80
A140PM P.M. 12-200V 1.1 kW 3 kW 200-4000rpm IP40 IP65 B3/B14/B5/IEC80/90
A140PML P.M. 12-80V 1.7 kW 5 kW 200-4000rpm IP40 IP65 B3/B14/B5/IEC80/90
A159 Shunt/Series/Comp. 12-220V 1.4 kW 4 kW 800-3500rpm IP20 IP65 B3/B14/B5/IEC80/90
A166PM P.M. 24-96V 4 kW 10 kW 800-4000rpm IP40 IP55 B3/B14/B5/IEC90/100
A178 Shunt/Series/Comp. 12-220V 2 kW 6 kW 1000-4000rpm IP20 IP55 B3/B14/B5/IEC80/90
A202PM P.M. 24-240V 4 kW 12 kW 1000-4000rpm IP20 IP55 B3/B14/B5/IEC90/100
A229 Shunt/Series/Comp. 24-96V 3 kW 8 kW 800-3000rpm IP20 IP55 B3/B14/B5/IEC90/100
A273 Shunt/Series/Comp. 48-96V 12 kW 17 kW 1500-3500rpm IP20 IP40 B3/B14/B5/IEC112
PM machine (same as separately excited machine with fixed field)
More information ⤴

History

Several historic pictures of Paulides B.V.

A company that exists already for more than 80 years is not an ephemeron.

It was started during the depression, since no work existed for a freshly graduated engineer, in dad's workshop behind the parental home. A business plan was not at the foundation.

Read more ⤴

About us

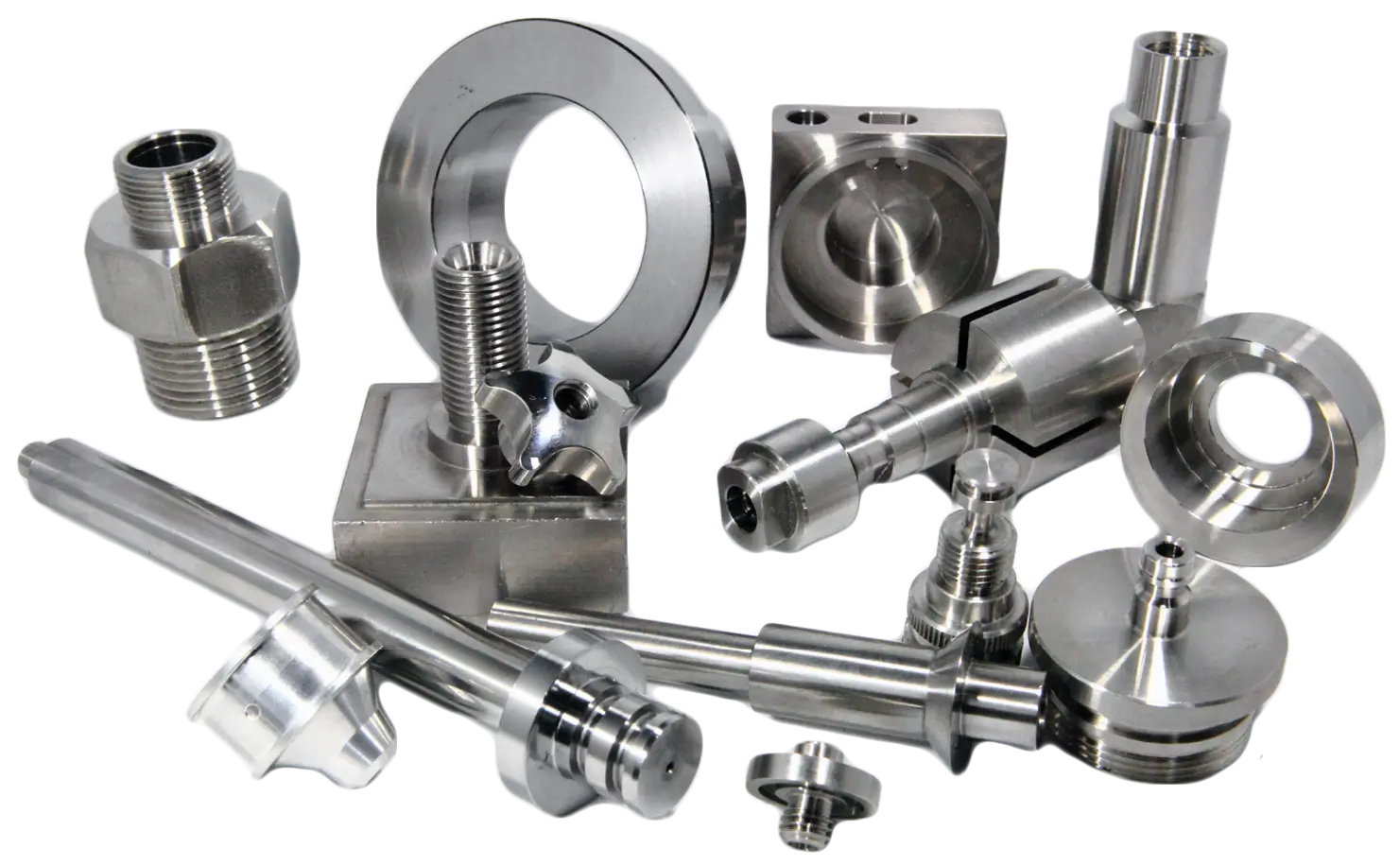

Image of engineering components

Paulides B.V. is a Dutch SME based in Sprang-Capelle established in 1938 and producer of DC supplied motors, where Paulides B.V. is capable of delivering single to relatively large orders.

The brushed DC commutator machines currently manufactured by Paulides B.V. range in size from 150W to 25kW and from 12V to 220V-DC and from 500rpm to 4000rpm. The machines can be either wound-field or permanent magnet excited, depending upon customer specification.

Read more ⤴

Projects

Netshield

The Netshield project aims to develop an innovative hybrid battery technology that responds within milliseconds, essential to maintain grid stability amid growing grid congestion and renewable energy sources. Within 3 years, the project aims to develop and validate a Hybrid Energy Storage System (HESS) at TRL7 level, achieving:

  • Power of at least 1 MW within 20 milliseconds
  • Energy density of at least 800 Wh/L
  • Lifetime of at least 10 years
  • Recyclability of at least 90%

To achieve this goal, Netshield is developing a HESS aimed at industrial applications, consisting of two complementary battery chemistries:

  • High Energy Battery (HEB) optimized for longevity and energy storage
  • High Power Battery (HPB) focused on delivering extremely high power within milliseconds

By developing an intelligent Energy Management System (EMS), loads are dynamically shared so that grid disturbances are mitigated whilst overall battery cycle life is improved. This aims to improve grid stability and the efficient use of renewable energy sources, leading to a significant reduction in CO2 emissions and resource savings.

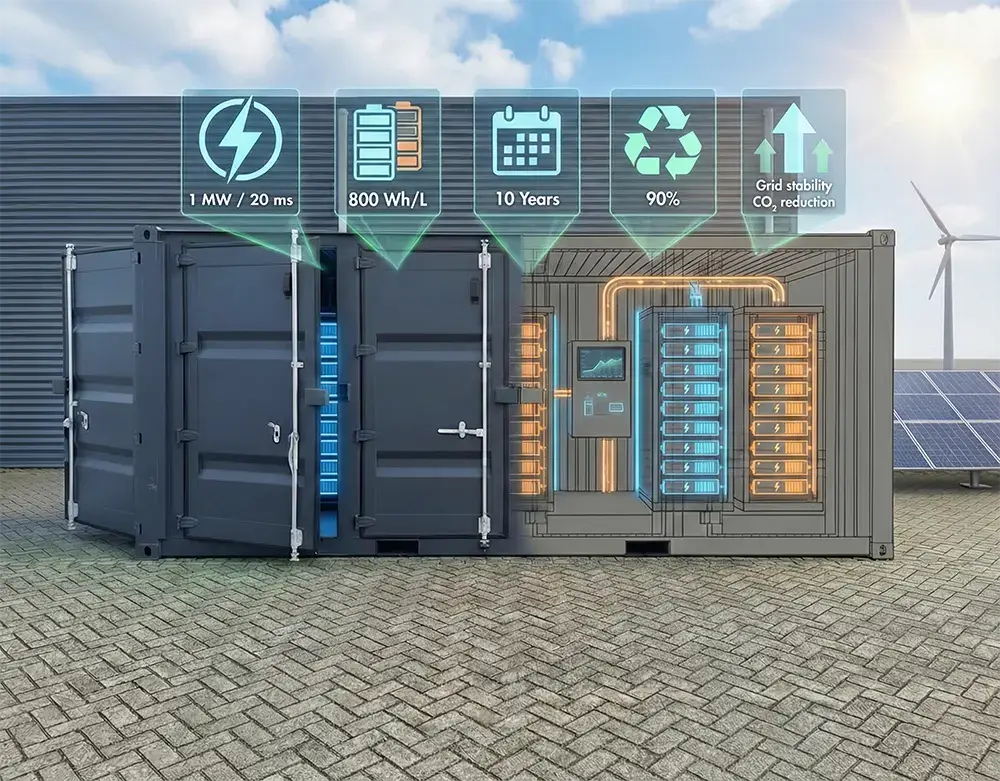

Netshield - OPZuid 2021-2027 - Container visualization

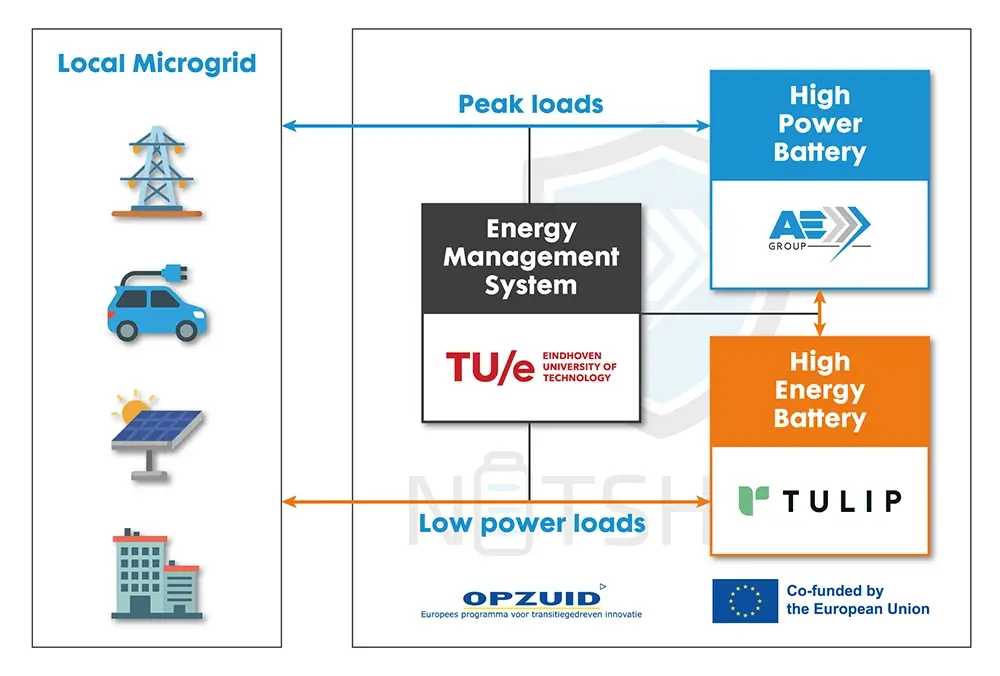

Netshield - OPZuid 2021-2027 - System architecture

This project is made possible by:

OPZUID Logo
EU Logo

Read more ⤴
